We are very pleased to provide our clients with the collection of Copper Flats that are of the optimum quality. The Copper Flats that we manufacture are good consumer of electricity and are non sarcastic in nature. Because of their dryness, smoothness and brightness they are highly acceptable by our clients. We provide Copper Flats in different dimension and sizes as per the client’s requirements. They are quality tested and stand all the codes of transparency. Specifications include :



Sizes : Width up to 152.4mm (6”) width



Grade : ETP, DHP & DLP



Thickness : 3 mm & above



For the purpose of Electrical Engineering we have a huge production facility for Extruded and Drawn Flats in various size and shape.



Properties :

• Excellent dimensional control for superior contacts

• Engineered for longer life

• Crack - free bends.

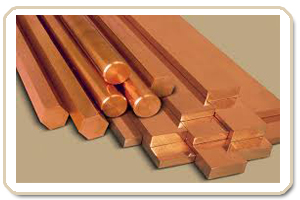

High Conductivity Copper Rods	As per BS 2874/69 C101 Near Equivalent specification I.S. 613/64P
Product Application Areas:	Electrical Conductors, Switches, Terminals, Gaskets, Radiators, Cotter Pins, Nails Rivets, etc. requiring high electrical and thermal conductivity
Copper Rods for General Engineering Purposes	As per Bs 2874/69 C106 Near Equivalent specification (I.S. 4171/67) Phosphorus deoxidised non arsenical Copper
Product Application Areas:	Household and General Purpose

As per B.S. 2871 Part 2/72 C 106 Near Equivalent. specification : IS 2501/77 DHP
Chemical Requirement:
Copper (Inc. Silver)	99.9 % min.
Total Impurities (Excl. Silver & Oxygen)	0.03% Max.

Physical Properties Half Hard :
Size mm	Tensile Strength N/mm²	% elongation on 5.65 Ö A Min
10-12	26.5	12
12-25	25.5	18
Over 25	23.5	22
Electrical Conductivity at 20°C (Annealed)                 99.25% I.A.C.S.

As per B.S. 2871 Part 2/72 C 107 Near Equivalent. specification : IS 2501/77 DPA
Chemical Requirement:
Copper (Inc. Silver)	99.85% min.
Phosphorus	0.013 to 0.05%
Total Impurities	0.06% Max

Physical Properties:
Temper	Tensile Strength N/mm²	% elongation on 5.65 Ö A Min
Annealed	21.5	33
As Manufactured	23.5	13







We supply Copper Strips of various sizes and shapes. These Copper Strips are used for applications such as Electrical Engineering, Anodes, Components, etc. These Copper Strips are available with us in sharp and round edges. Avail these Copper Strips from us at budget friendly price. Used In Transformers Switchgears Panels Earthing Electrification-Lines Specifications Width : 19 mm to 260 mm Thickness : 3 mm & above Edges Sharp Round

We supply and stock Copper Plates  to our esteemed clients. The Copper Plates offered by us are provided to the clients in different grades and specifications, for catering to their exact requirements.



Available In

• Grades
  • Commercial
  • ETP
  • DHP
• Sizes
  • 8’ x 4’
  • 4 ‘x 4’
  • 1 mtr x 2 mtr
  • 14” x 48”
  • 2’ x 2’

Thickness

• From 0.1mm to 25mm
